Sheet Folders

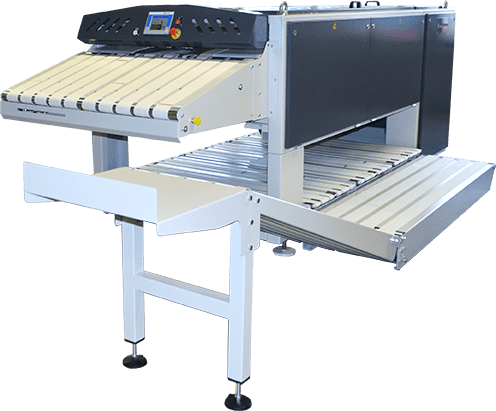

The IPSO sheet folder with drop stacker ASFV is the best solution for bed sheets, duvets, tablecloths and large sheets.
This high speed folder makes 2 lateral folds combined with 3 cross folds and the sheets get stacked by the drop stacker.
Available in a maximum working width of 3000, 3300 and 3500 mm.
SHEET FOLDER WITH DROP STACKER ASFV30 / 33 / 35
- The best solution for bed sheets, duvets, tablecloths and large sheets
- High speed folder with single lane sheets making 2 lateral folds combined with 3 cross folds and stacking by a drop stacker
- It saves labor for higher productivity and folding quality
- First and second length folds are executed by air knife
- First cross fold by knife. Second and third cross folds by knifes and belt reverse conveyor.
- Moveable delivery table for small items by-pass cross folding
- Standard max. length on multi-lane is 1 200mm
- Automatic speed synchronisation from 7 to 50M/min
- Safety according to CE-regulations
- Heavy duty steel construction: main frame with long lifespan due to rust protection by powder coating
- Stacker can be positioned on right or left, to fit laundry you path
